Antenne GSM UMTS WLAN LTE Fakra F 1 5m
An adhesive mount internal antenna with the followining features:
- Worldwide use in all cellular networks
- Fast mounting
- Easy cable laying
Advice:
- The antenna should be mounted at least 5 cm away from the metallic parts
Note:

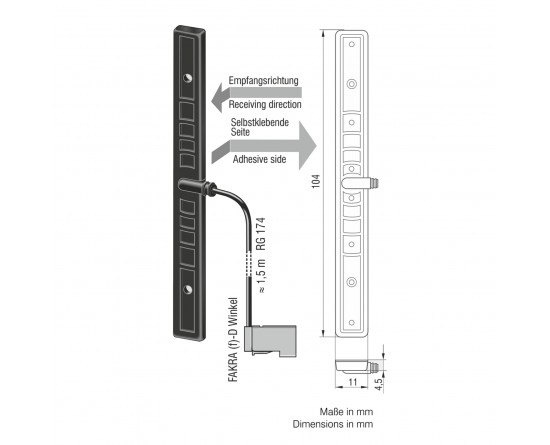

- For optimum performance follow illustreated mounting indications (lateral cable outlet requires vertical polarization)
Further informationen:
- Installation: Fast
- Further Information: Adhesion on plastic
- Category/Special features: Standard
- Worldwide use in all cellular networks
- Fast mounting
- Easy cable laying
Advice:
- The antenna should be mounted at least 5 cm away from the metallic parts
Note:
- For optimum performance follow illustreated mounting indications (lateral cable outlet requires vertical polarization)
Further informationen:
- Installation: Fast
- Further Information: Adhesion on plastic
- Category/Special features: Standard
| Branchen: | Fahrzeugantennen und Zubehör, Smart Meter und Industrie 4.0 |
| Application: | Public safety communications, Smart meter / Smart Industry, Vehicle antennas and accessories |
| Service: | 868 MHz, Bluetooth, GSM, LTE, UMTS, UTMS, WiFi |
Fakra F Code D 1,5 mtr
| Meer informatie | |
| Accessoiremerk | Blankenburg |
| Antenne / Combi selectie | Antenne (geen combi) |
| Antenne assortiment | Antenne |
| Antenne bevestiging | Binnen-plak |
| Barcode | 8717091771901 |
| Connector Fakra - Code en Kleur | Code D - Violet (Bordeaux) GSM |
| Connectortype A (M/F) | Fakra Female |
| Kleur | zwart |

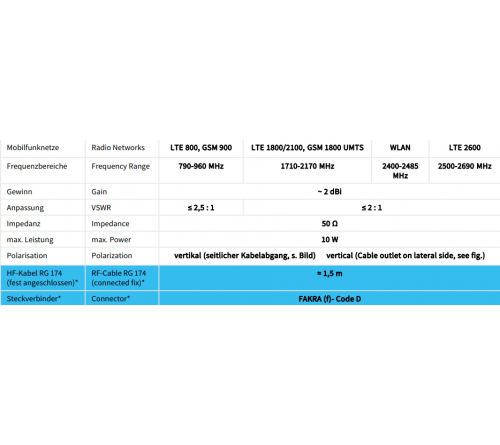

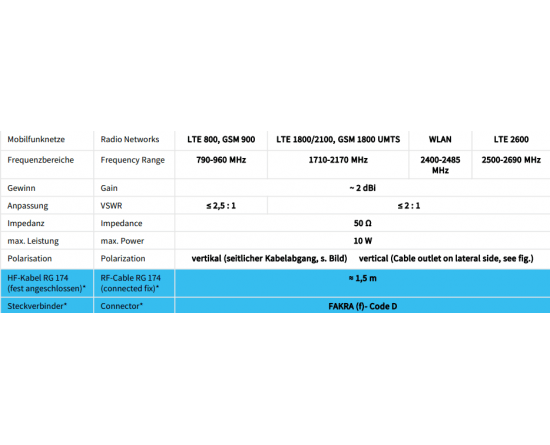

| Netwerk / Antenne Frequentie | GSM 850/900/1800/1900 MHz, UMTS 1920 - 2170 MHz, 4G / LTE (EU) 698 - 862 / 2305 - 2690 MHz, WLAN of Bluetooth 2400 - 2484 MHz |
| Automerk | Model | Bouwjaar |
| Universeel - (V) | Universeel voor Voertuigen | 2025 |
